Adjustable Round HVAC Grilles
Adjustable Round HVAC Grilles
SKU / MPN: 005124
Couldn't load pickup availability
Need help confirming fit or freight? Ask a product question. Ordering details: View the FAQ.
Round grilles provide 360 degrees air flow and are changing the way builders design their new homes.

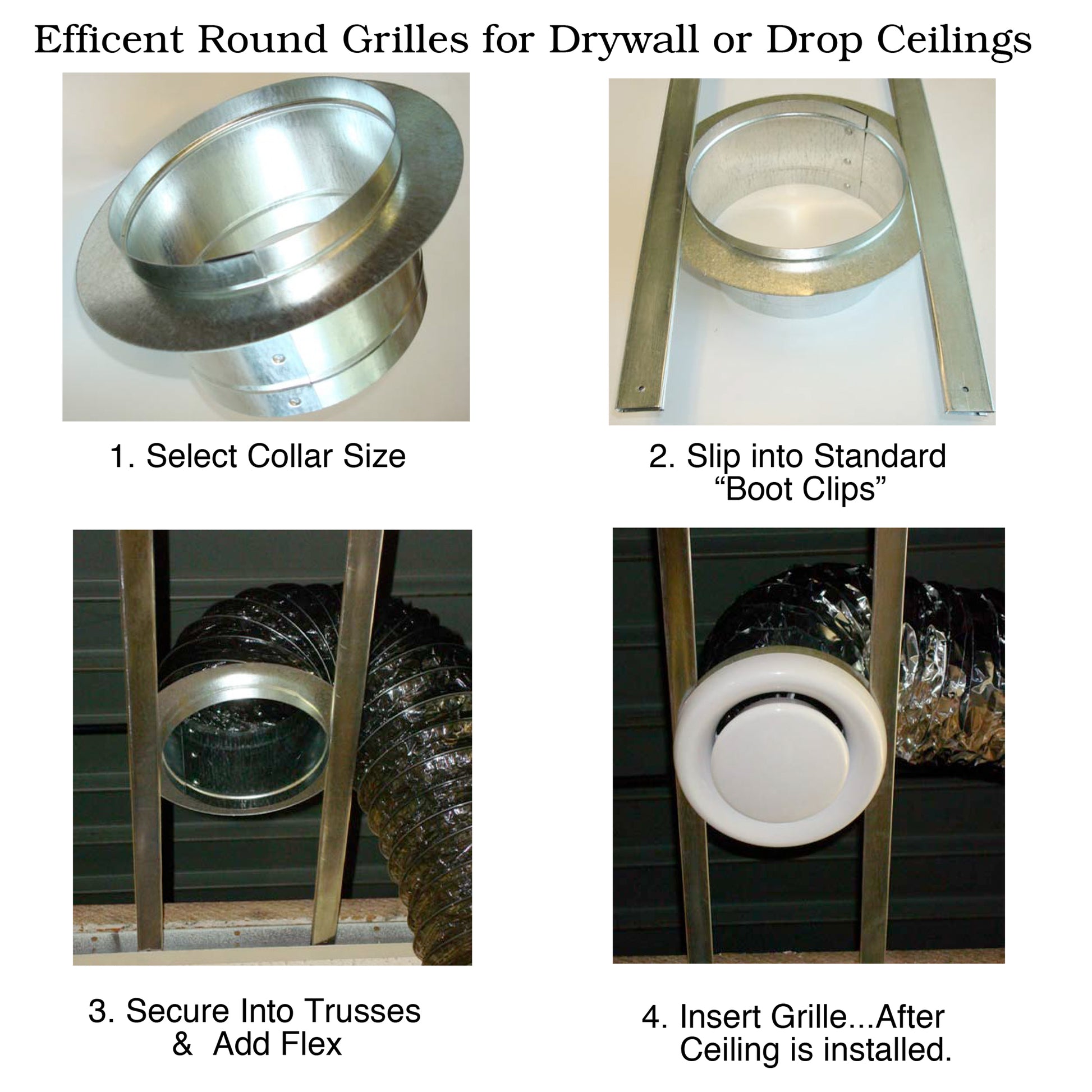

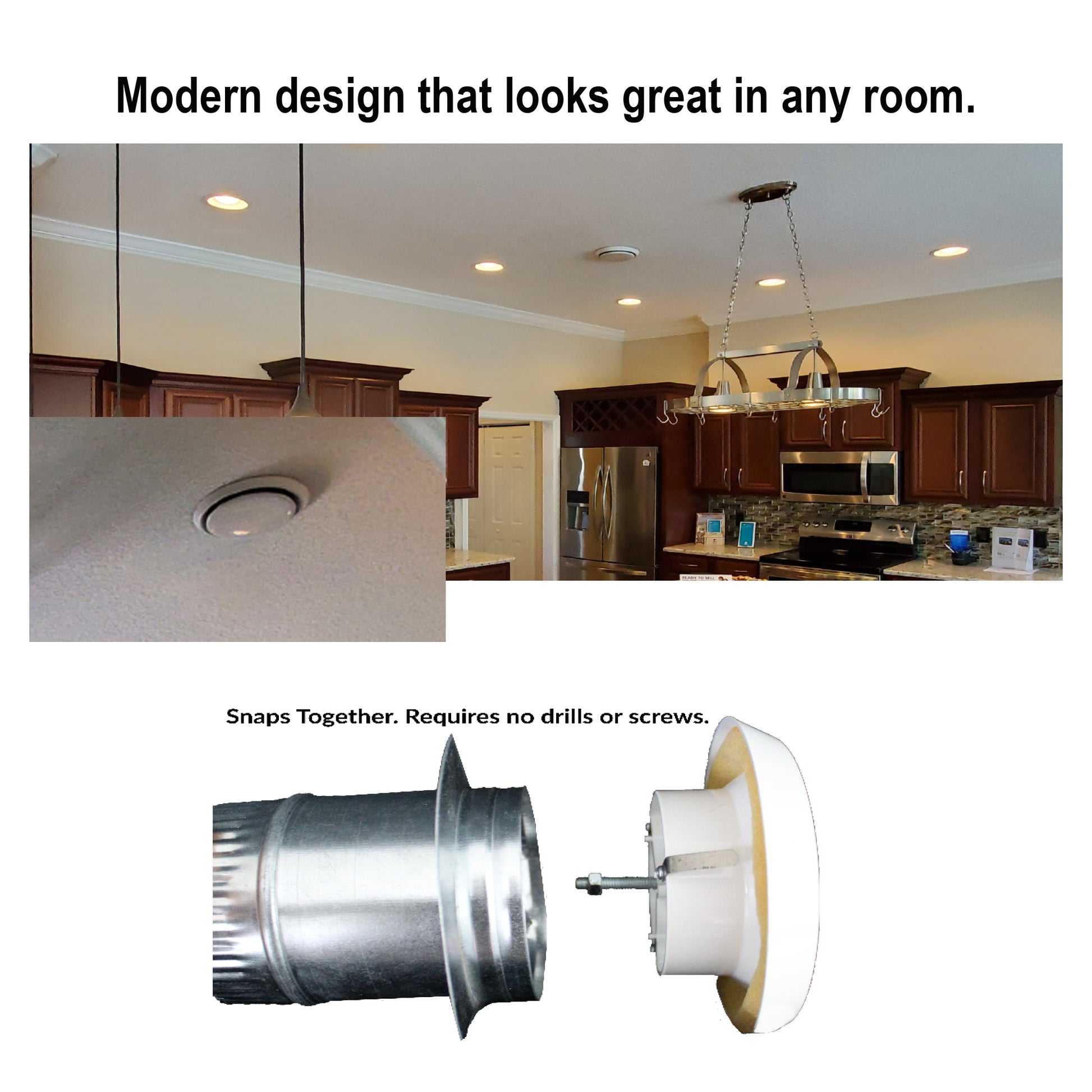

No register box needed for installation. Rough in the included collar, install drywall or ceiling material, snap on the round grille. It's that easy and it offers that modern look homeowners love.
Easy air flow adjustment with a spin in/out circular center disc. Can be used for supply and return air.
Once used, contractors prefer round grilles over conventional grilles due to their easy installation, no additional parts are required to install them, and they are much less expensive than all the parts needed for standard grille installation. Installation time is much faster saving labor hours, plus they look great.
Save money and labor hours by switching to round grilles.

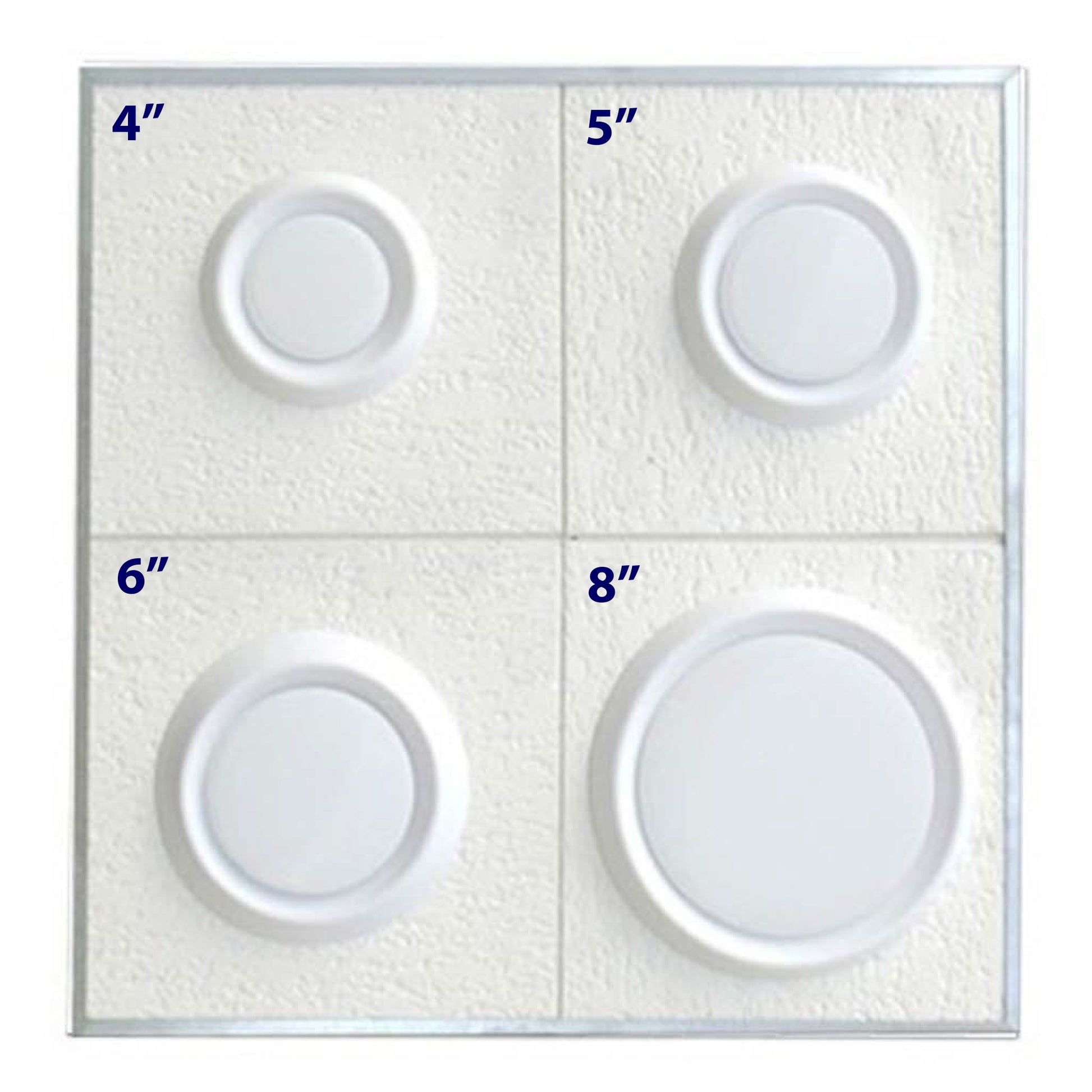

Available in 4 sizes. Grilles are white, come with the collar.
Product specifications
- Selected model
- 4" — Model A 100 VR + C
- Compatibility
- Residential supply or return air installations using the selected round flex-duct connection size.
- Product dimensions
- 4-inch duct connection; rated up to 120 CFM.
- Material
- White anti-static ABS plastic grille with steel mounting collar.
- What is included
- One adjustable round grille and one matching steel mounting collar.
- Sold as
- 1 grille and collar assembly.
- Shipping weight
- 1.5 lb.
- Package dimensions
- 29" x 17" x 5"
- Installation

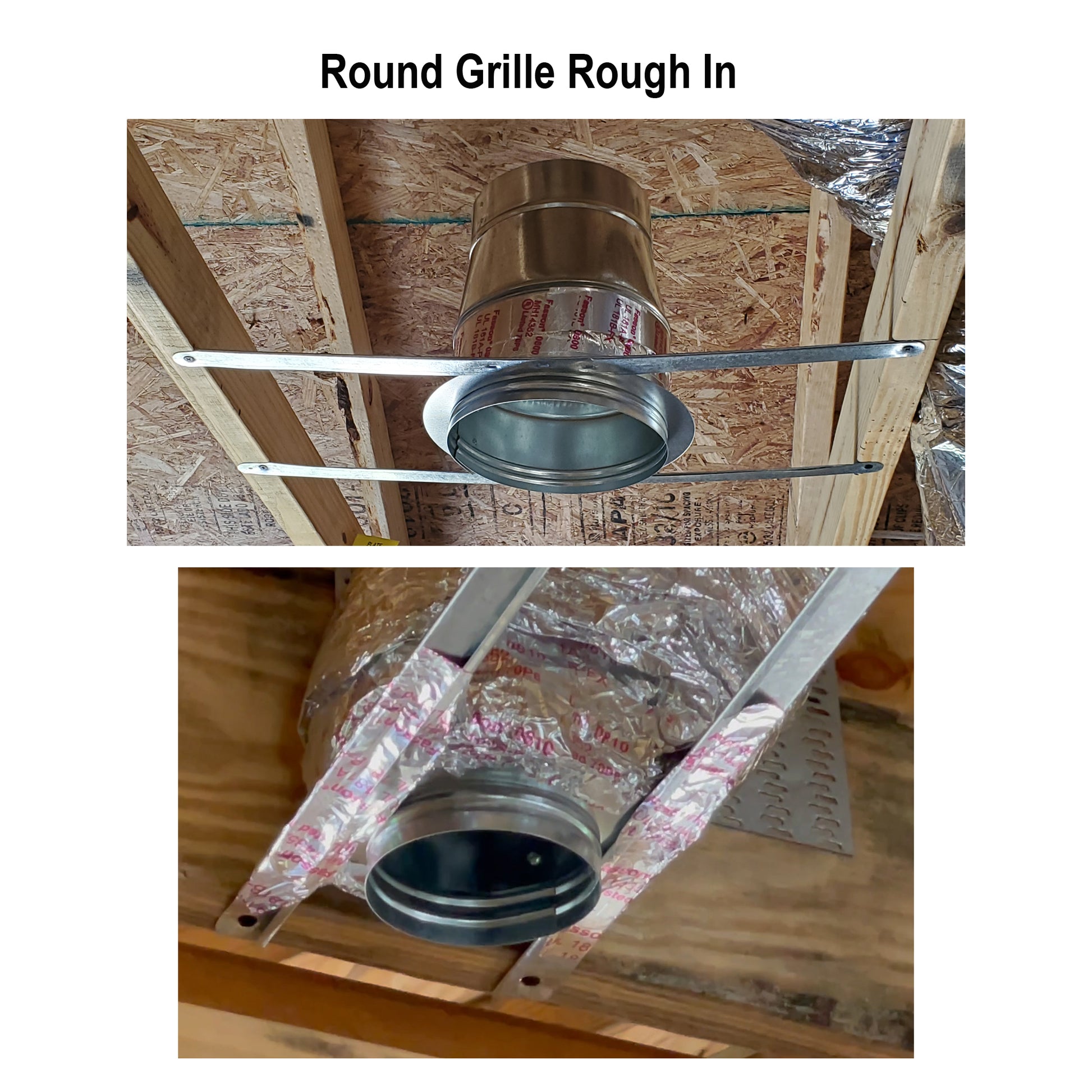

- Secure flex duct to the collar, rough the collar into the opening, finish the wall or ceiling surface, and push the grille into place.
- Shipping
- Ships in the confirmed grille carton.
- Specification sheet
- Download PDF
