DryerJack® Roof Vent by InOvate® — Box of 4
DryerJack® Roof Vent by InOvate® — Box of 4
No reviews
Regular price
$233.20 USD
Regular price
Sale price
$233.20 USD
Shipping calculated at checkout.
SKU: 002240M · MPN: DJK477M
Quantity
Couldn't load pickup availability
Need help confirming fit or freight? Ask a product question. Ordering details: View the FAQ.
The DryerJack® is built tough in the USA. Advanced model 477 is deep draw manufactured with heavy gauge Galvalume® steel and designed for low-profile, airflow-efficient performance. The hood’s wide opening, protected by a patented, curved damper, is cleaning tool accessible and handles the demanding needs for properly venting a dryer.
- Made of Rugged Heavy Gauge Galvalume® Steel
- Complies With Building Code: IMC 504 & IRC 1502
- Includes Nail Holes for Installation Ease
- Protects with Seamless Hood and Unibody Base
- Available in Three, Heavy Powder-Coated Colors
DryerJacks are optimally designed for roof pitch between 3/12 and 12/12.

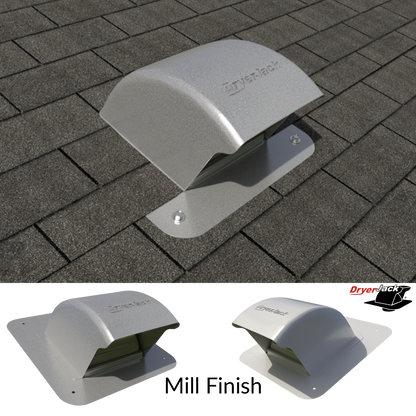

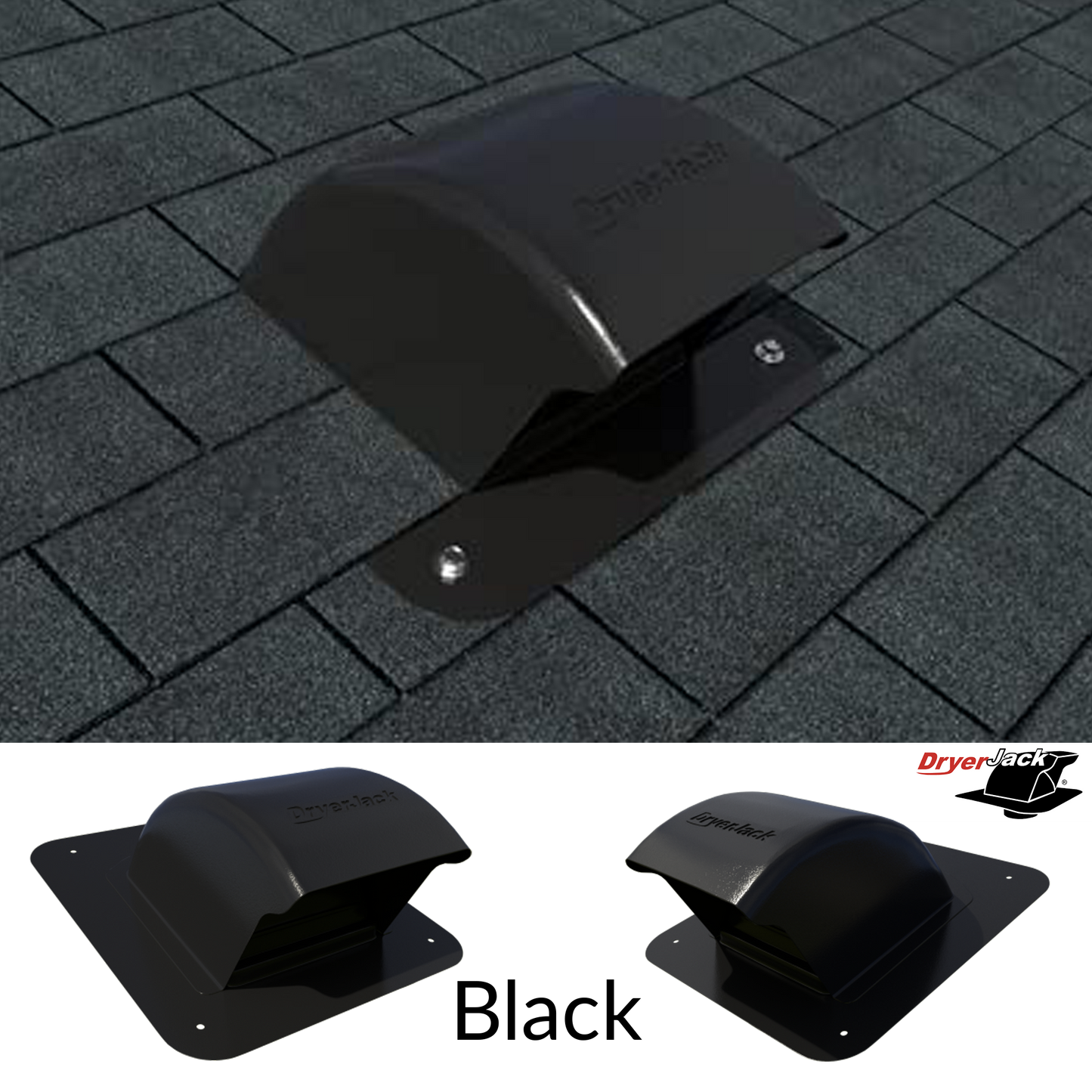

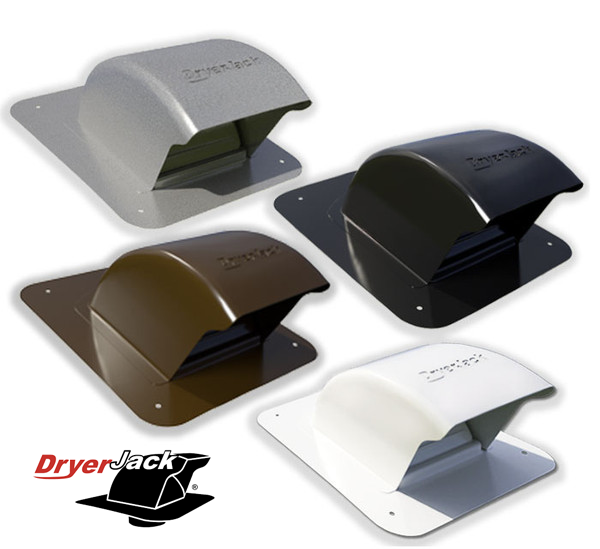

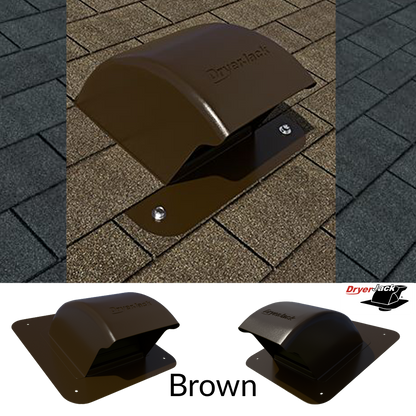

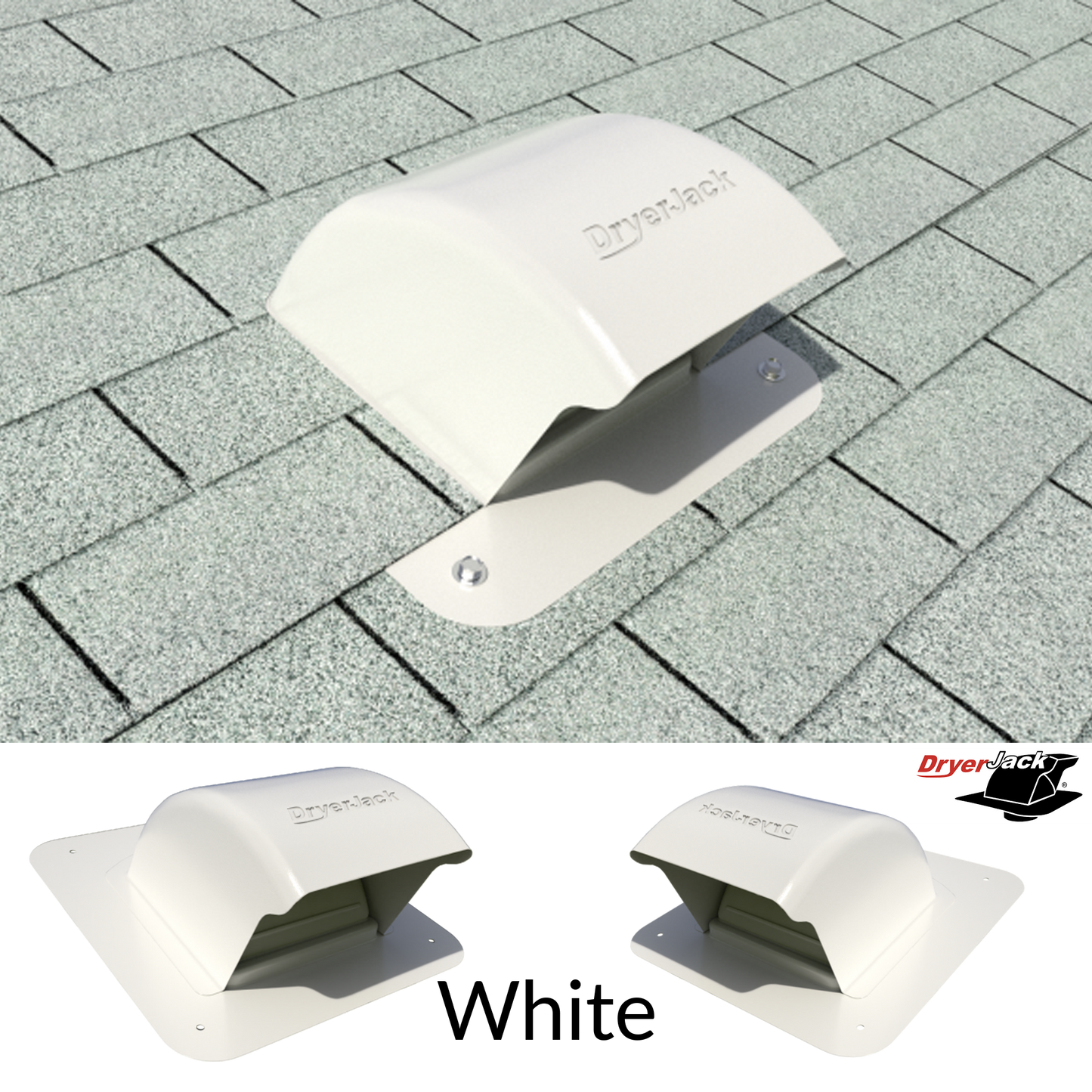

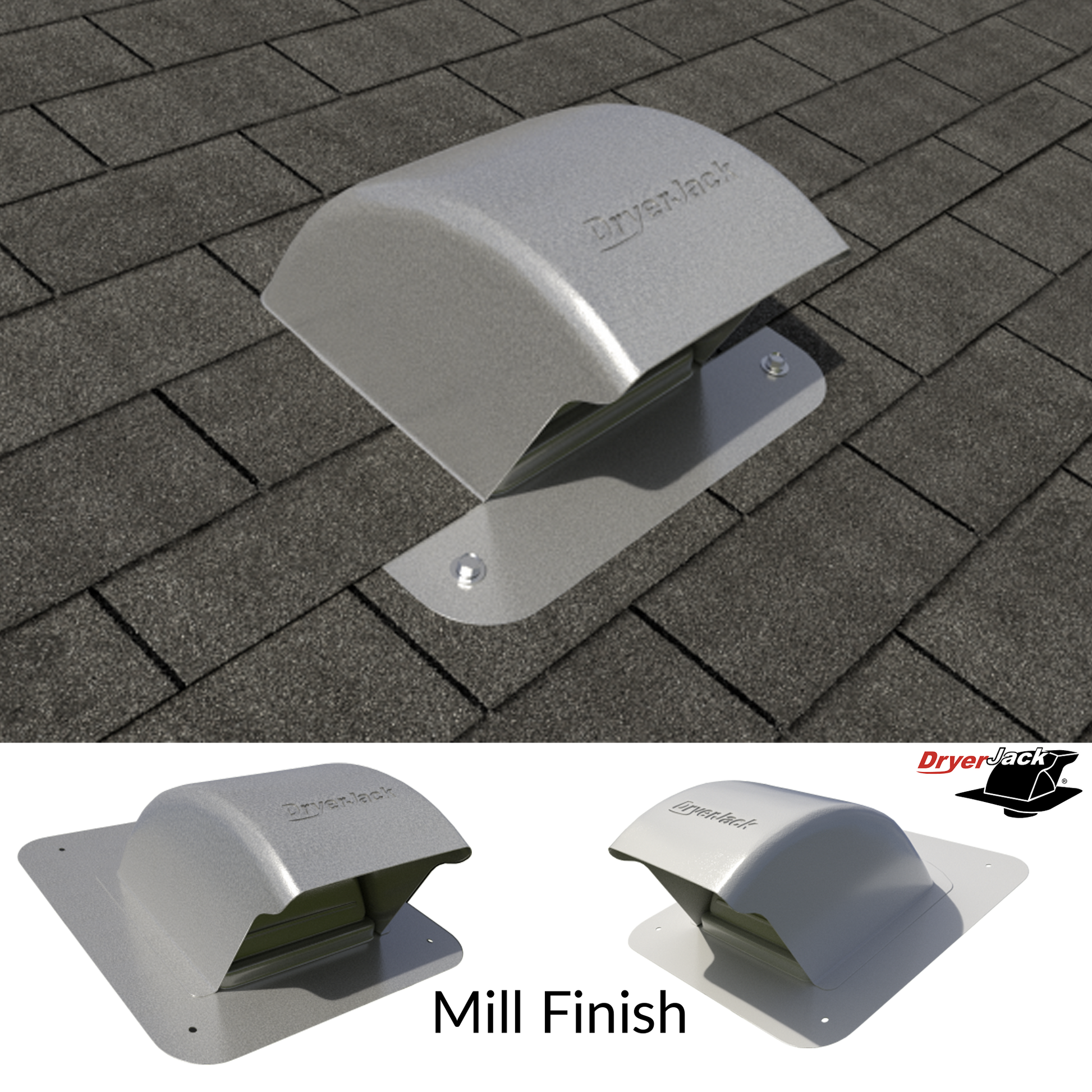

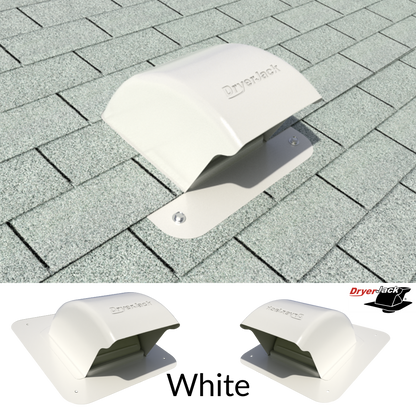

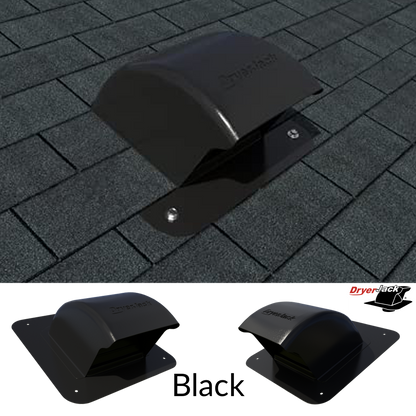

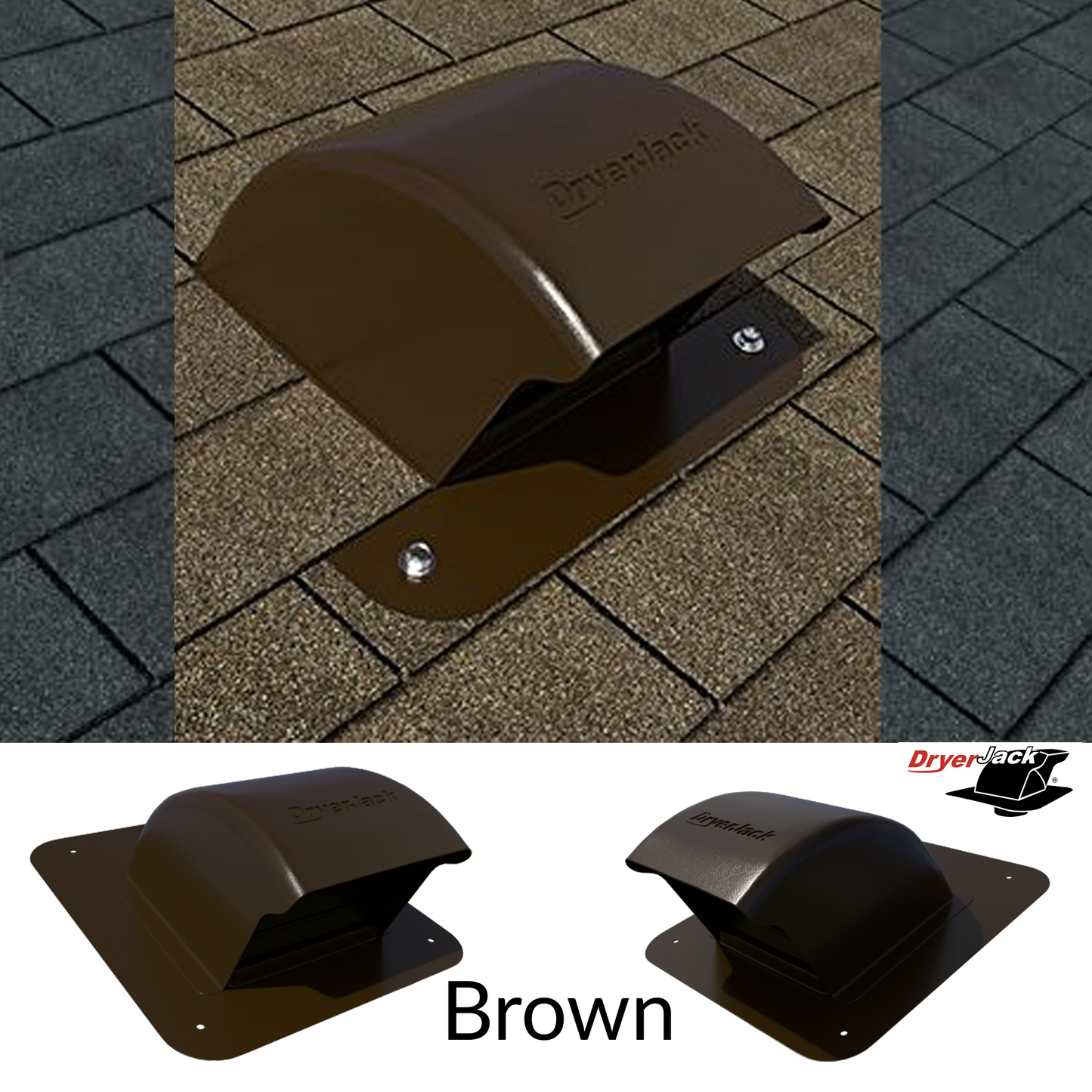

Available in Mill Finish, Black (K), White (W), or Brown (B)
Manufactured by InOvate
Product specifications
- Selected model
- Mill Finish
- Compatibility
- 4-inch dryer exhaust roof termination for roof pitches from 3:12 through 12:12; Model 477 low-profile application.

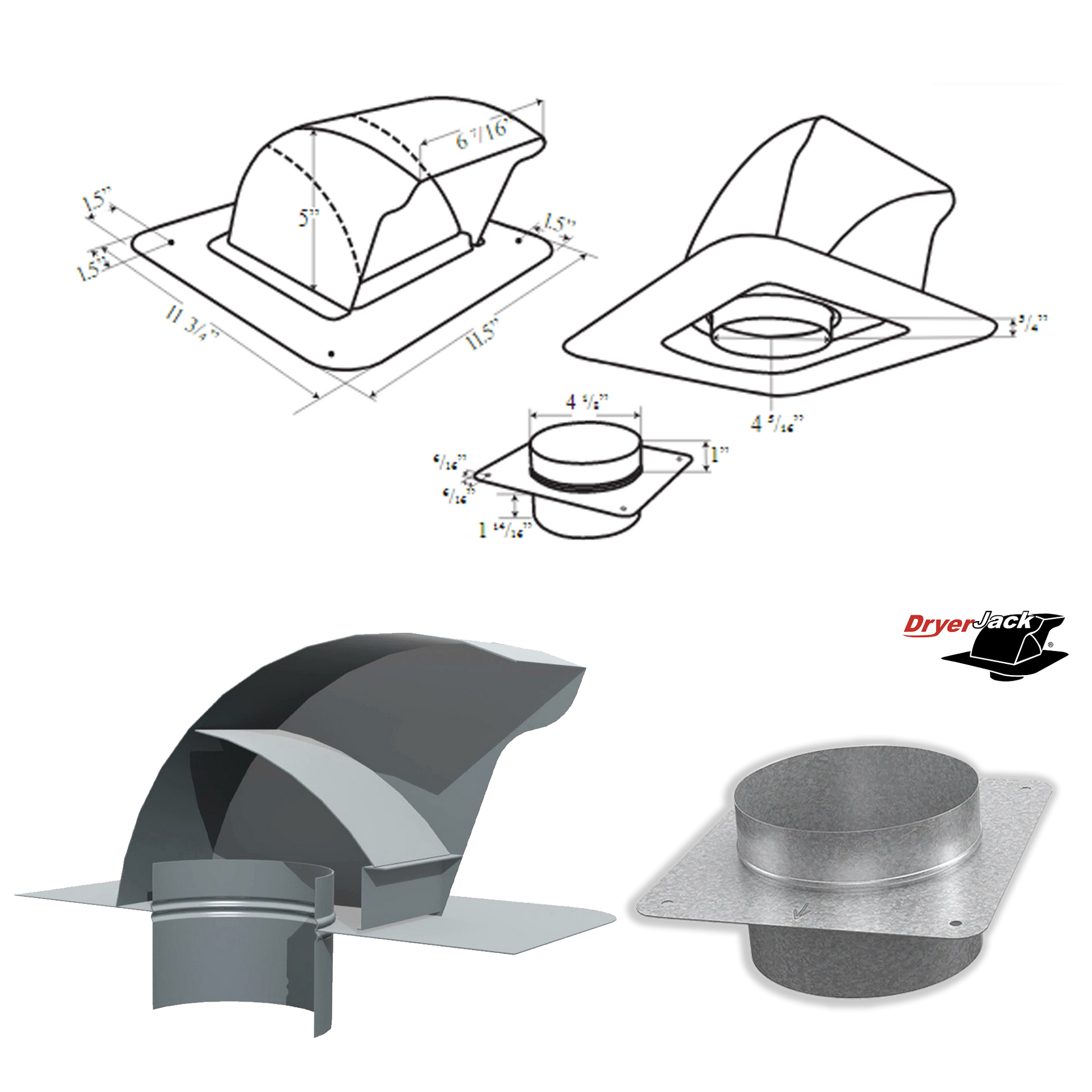

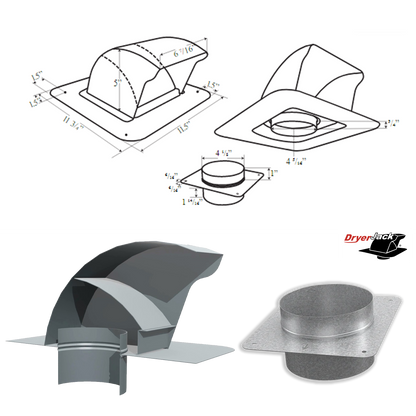

- Product dimensions
- 12.75" × 11.5" × 6.4375"
- Material
- Heavy-gauge Galvalume steel.
- Gauge
- 26 gauge.
- What is included
- Four DryerJack Model 477 roof vents in the selected finish or color.
- Sold as
- 1 box of 4 vents.
- Shipping weight
- 13.5 lb.
- Package dimensions
- 32" × 13.5" × 6.5"
- Installation
- Install as a roof termination for a 4-inch dryer exhaust system according to local code and the specification sheet.
- Shipping
- Ships as one carton of 4 vents.
- Country of origin
- Made in the USA
- Specification sheet
- Download PDF
